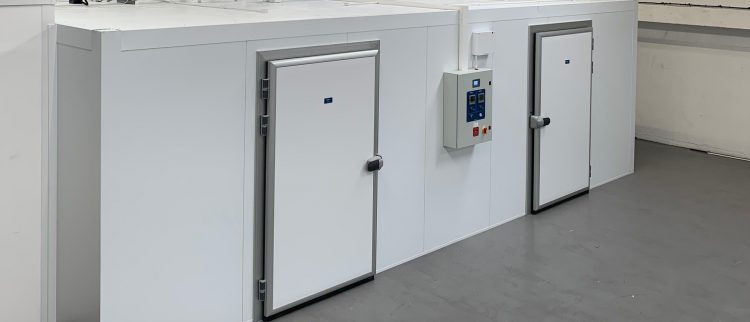

Walk in Incubators

technickon walk-in incubators provide a large volume, validatable controlled environment at a very cost effective price. The modular construction of the room fabric and components ensures that any future re-location and maintenance is very straightforward.

We design and build all rooms and equipment in our UK factory and have the ability to custom build any room requirements – we are not restricted by a standard range.

Our walk-in incubator rooms are custom designed to fit any dimensions, typically starting from 2.1m high x 2.1m wide x 2.1m deep, and can be expanded to suit any Client requested dimensions.

The rooms are capable of operating at temperatures of 5ºC to 50ºC (+/-1ºC) and humidity ranges of 20% to 95% relative humidity (+/- 5%RH).

The standard range of walk-in incubator rooms use an indirect refrigeration system to assist with controlling the internal temperature of the room. The chiller is located externally and can easily be removed and accessed for maintenance. It uses a direct refrigeration system to cool a tank of water to a specific temperature directly related to the operating set point of the room. This cooled water is then pumped to a cooling coil and works together with the electric resistance heaters controlled by PWM to provide extremely accurate temperature control.

The rooms can incorporate a bespoke shelving system that is designed to fit around our floor mounted air distribution system. The entire shelving system is manufactured from grade 304 or 316 stainless steel.

We can design and build any type of room to encompass all of your requirements however demanding.



Call one of our engineers today to discuss your requirement.
